Genuine Watterott TMC2100 Stepper Motor Driver & Heatsink.

Name: Genuine Watterott TMC2100 Stepper Motor Driver & Heatsink.
SKU: E-STEPPER-DRIVER-TMC2100
Price: 11.0 GBP
Availability: InStock

Store / E3D / Upgrades / Motors, Drivers and cables / Drivers

£11.00

or four payments of £2.75 each with View details

In stock

Product Details

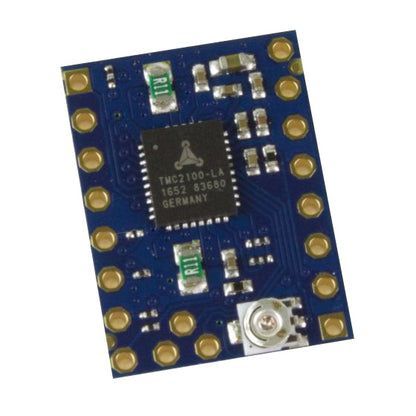

Stepper Motor Driver based on a Trinamic TMC2100.

For control units with 5V logic voltage.

Further infos on the GitHub project page: github.com/watterott/SilentStepStick

Features

Hardware compatible with StepStick and Pololu A4988
Drive capability up to 1.2A (RMS) continuous coil current
Step/Dir interface with microstep interpolation (up to 256 microsteps)
Configuration via CFG pins
Motor voltage: 5.5...45V
Logic voltage: 5V
stealthChop - for quiet operation and smooth motion
spreadCycle - highly dynamic motor control chopper
