Embedded Bowden Couplings - For Plastic (1.75mm Filament)

Name: Embedded Bowden Couplings - For Plastic (1.75mm Filament)
SKU: M-BOWDEN-COUPLING-PLASTIC-175
Price: 1.85 GBP
Availability: InStock

Back to catalog

£1.85

or four payments of £0.46 each with View details

In stock

Product Details

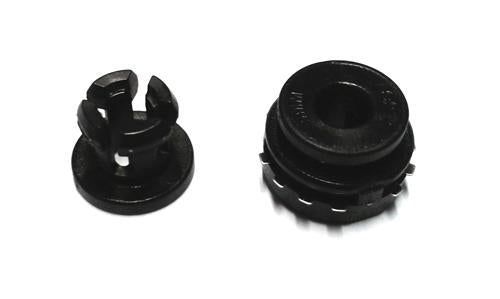

Embedded Bowden Couplings - For Plastic (1.75mm Filament)

The couplings are designed to take 4mm OD tubing and the plastic ring is designed to be inserted into a 12mm hole at least 7mm deep.

Dimentions for the outer ring:

Outer diameter: 11.8mm
Overall diameter: 12.8mm
Inner diameter: 6.3mm
Thickness: 5mm

Dimentions for the insert:

Outer diameter: 10mm
Inner diameter: 4mm
Thickness of top lip: 1.5mm
Diameter of legs: 6mm
