Duet Expansion Breakout Board v1.1
+3
+2

Duet Expansion Breakout Board v1.1

Store / Duet3D / Add Ons
£27.50
4 payments of £6.88 with
Learn more
In stock
Product Details

Duet Expansion Breakout Board v1.1

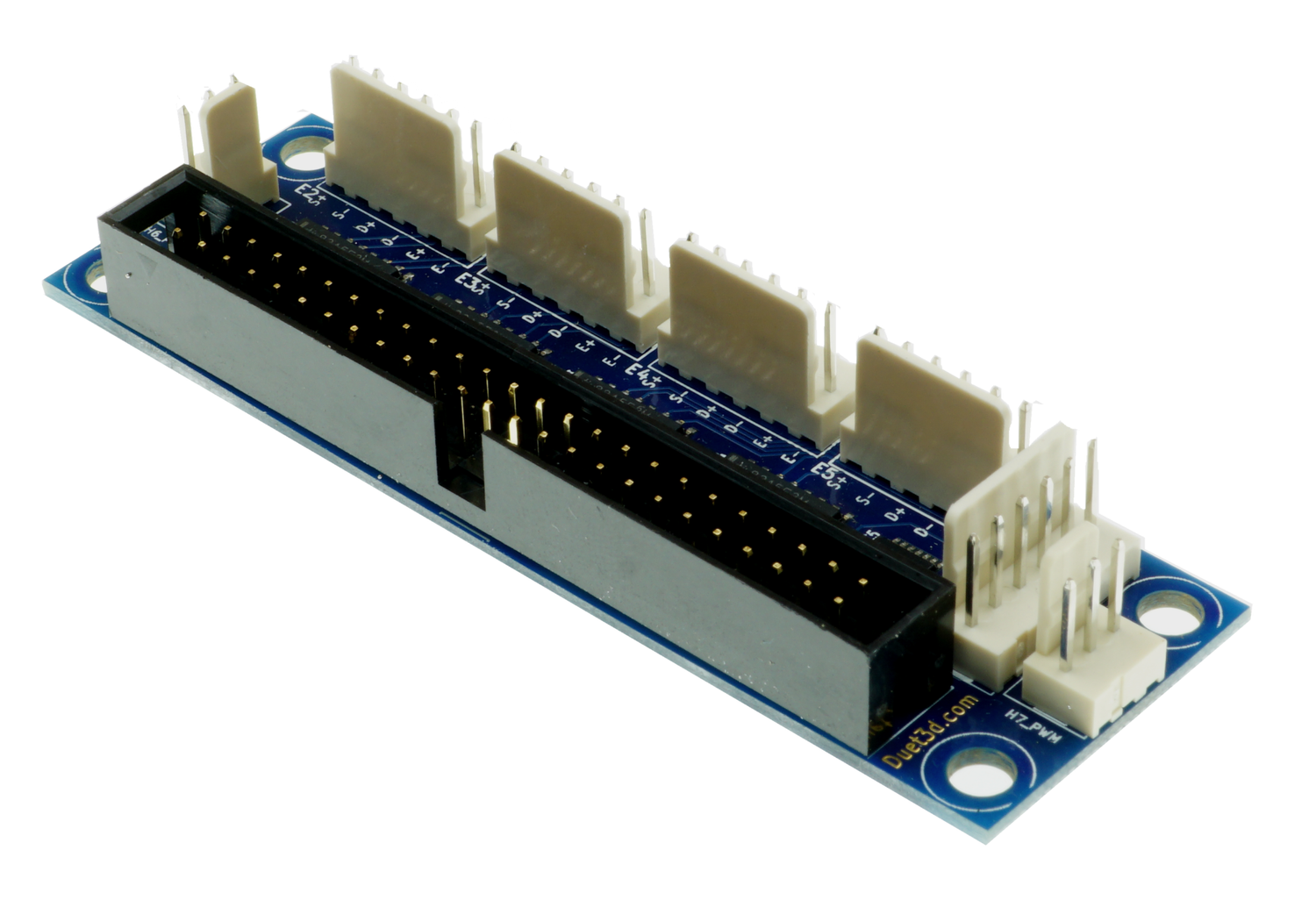

This breakout board connects to the expansion header on the Duet 2 Wifi, Wifi-EA and Ethernet controllers and is specifically designed for external drivers that take differential signals. It breaks out each of the 5 Expansion header stepper channels as follows:

Step+

Step-

Dir+

Dir-

En+

En-

It also breaks out heater 6 and 7 signals to 5V.

FEATURES
Connectivity It comes with Molex KK compatible connectors and crimps, along with the 50way IDC cable to connect to the Duet expansion header
Voltage Provides a differential output signal of -3.6V to +3.6V. Can also be used in an open collector mode with the +’ve signal lines form the external driver connected to one of the two +5V terminals on the board
Show More
